Wired discussion architecture
Plan seat count, cabling and connection topology together. Network ports are for a wired system.
MDU / Digital conference controllersBring the discussion
Bring the discussion
into focus.

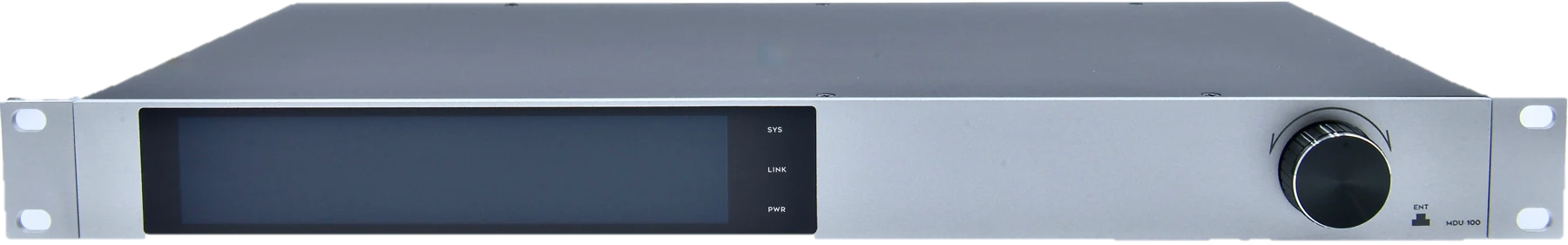

MDU100 and MDU50 form the core of a wired network discussion system. Compare the control surface, audio connections and software version before choosing your platform.
Discuss Sample Evaluation
01MODEL CONFIGURATIONS
Know what you’re selecting.
On smaller screens, scroll the table sideways to compare all configurations.
| Configuration | MDU100 | MDU50 |
|---|---|---|
| Front-panel display | 6.99-inch touchscreen | 1.8-inch display |
| Unit network ports | 4 | 4 |
| Discussion units per controller | Up to 60* | Up to 60* |
| Meeting modes | 6 | 6 |
| Analog inputs | 2 MIC/LINE | 1 MIC/LINE + 2 LINE |
| Analog outputs / inserts | 4 analog outputs | 2 × 2 insert I/O; group / mix outputs |
| USB interface | USB-B · 2 × 2 audio | USB-C |
| Dante | Confirm project configuration | 4 × 4 option |
| Associated software | SBM V2.0.1 | SBM V3.0.0 |
*Capacity is a documented controller limit, subject to system configuration and cabling review. Voting, interpretation, AI transcription and advanced meeting modules are version- and license-dependent; they are not universal free standard features.
Configuration reference: Network conference PPT · 2026-01-23; model configuration table · 2026-09-11. Specifications describe the reviewed product documentation; confirm the selected version during evaluation.
02FROM SPECIFICATION TO APPLICATION
Meeting and device management
Discuss roles, meeting modes and device monitoring within the controller’s matching software version.
Camera integration
Review the camera model, control protocol, host and software authorization before confirming tracking functions.
A better brief.
A more useful evaluation.
Include these details when you contact us:
Seat count, controller preference, meeting workflow, USB and analog connections, camera protocols and licensed feature requirements.
